Product Description

Public Safety P25 Conventional Repeater

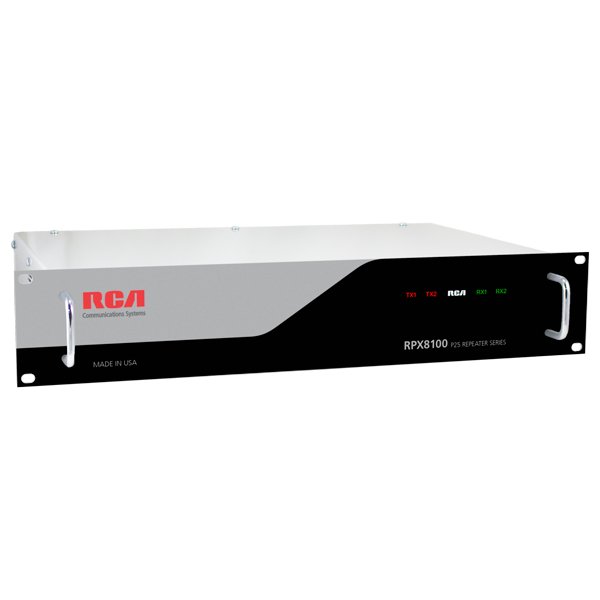

RCA’s RPX8100 Series Repeaters meet all Project 25 (P25) Conventional specifications for Federal Government, Police, Fire, Ambulance, and other emergency services. These heavy-duty P25 repeaters are highly customizable and will meet or exceed the needs of demanding public safety users.

Click here for a quote

Standard Configuration:

  • Repeater Unit P25 Digital, 25 Watt of Power



  • RPX8100V 25 Watt of Power, VHF 136-174 MHz
  • RPX8100UR 25 Watt of Power, UHF 335-400 MHz
  • RPX8100U 25 Watt of Power, UHF 400-480 MHz
  • RPX8100U2 25 Watt of Power, UHF 440-520 MHz
  • RPX8100 X-BAND 25 Watt of Power, VHF-UHF Cross Band Operation

Output Power Options

  • RPX8100V 40-110 40 to 110 Watt Upgrade for RPX8100V
  • RPX8100UR/U/UR 40-100 40 to 100 Watt Upgrade for RPX8100UR, RPX8100U, RPX8100U2


Power Supply

  • Standard Power Supply 19″ Rack Mount Standard Switching Power Supply 20 amps for use with Standard 25 Watt Repeater Output Power
  • Standard Power Supply 19″ Rack Mount Standard Switching Power Supply 40 amps for use with Upgraded 40-110 Watt Repeater Output Power
  • Power Supply w/ Battery Backup 19″ Rack Mount Heavy Duty Switching Power Supply with Battery Backup Option 20 amps

19″ Racks

  • RACK 12U 19″ Heavy Duty 12U Open Rack, 24″ x 19″

P25 Compliant to provide interoperability, integrating easily with any existing P25 Conventional Systems for Public Safety Applications.

25 Watts of Power provides maximum signal strength and coverage with optional upgrade up to 110 Watts of Power.

100% Duty Cycle Operation provided in all output power levels between 25 and 110 Watts.

AMBE+2TM Vocoder advanced digital vocoder eliminates background noise and provides crystal clear, loud communication.

Encryption pass through is available as a standard option. The repeater works flawlessly with both DES-OFB 128-bit or AES 256-bit encryptions in P25 Digital mode.

Durable and Reliable all aluminum design that meets Military Specifications for durability, extreme temperatures, solar radiation, vibration, blowing dust and sand.

Compact Design that takes only 2U of rack space and weighs only 10 lbs.

3 Year Warranty best in the industry as a sign of confidence in the quality of our products and to provide you with a piece of mind when choosing the RCA two-way radios for your communication needs.

  • Frequency Bands – VHF 136-174 MHz; UHF 335-400 MHz; UHF 400-480 MHz; UHF 450-520 MHz
  • Power Output – 1 to 25 Watts (3 programmable levels)
  • Channel Spacing – 10, 12.5, 20 or 25 kHz
  • Modulation – C4FM, FM
  • Frequency Stability – +/- 1.5ppm.
  • Conformance – EN 300 086, EN 300 113, EN 300 219, EN 300 279, AS4295, FCC, IC, P25CAP Compliant
  • FCC Emissions Designators – 11K0F3E, 11K0F3D, 16K0F3E, 16K0F3D, 8K10F1E, 8K10F1D
  • Mil Specs – MIL-STD-810 C, 810 D, 810 E, 810 F, 810 G
  • Operating Temperature – (-)22°F (-30°C) to (+)140°F (60°C)
  • Rack Space – 2U
  • Dimensions – (H) 3.5 inches (8.89cm) x (W) 19 inches (48.26cm) x (D) 12.5 inches (31.75cm)
  • Weight – 10 lbs 4 ounces (4.65kg)

3 Year Standard Manufacturer’s Warranty
